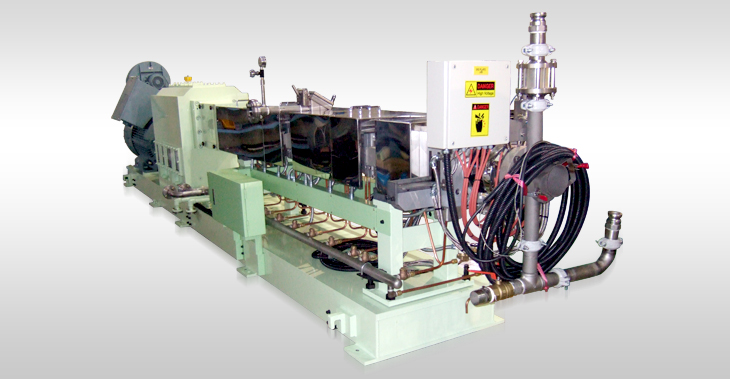

CHS-HS120

Specification for Twin Screw Extruder (CHS-HSSeries)

Model Main Drive Motor Screw Revolution Screw Diameter Length / Dia. (L/D) Through
kw rpm mm (Ø) mm kg / hr
CHS-HS58 132 430~600 57.5 32~52 400~800
150.185 600~950
CHS-HS70 185.220 500~700 70.2 32~52 600~1500
250.300 800~950
CHS-HS75 220.250 430~700 74.2 32~52 1000~2000
300.400 700~950
CHS-HS92 350.450 430~700 91.2 32~52 1500~3000
600 600~950
CHS-HS120 600, 800, 1000 450~700 119.0 32~52 2500~4000

Dimensions

Model Weight A B C D E F G
CHS-HS58 4600 1400 1600 2085 900 1160 620 1930
CHS-HS70 7000 1562 1784 2160 900 1190 650 5200
CHS-HS75 8500 1725 1920 2700 1000 1340 800 5900
CHS-HS90/92 9500 1800 2450 2870 1000 1405 850 6670
CHS-HS120 13000 2700 2940 5040 1500 2050 1170 10420
