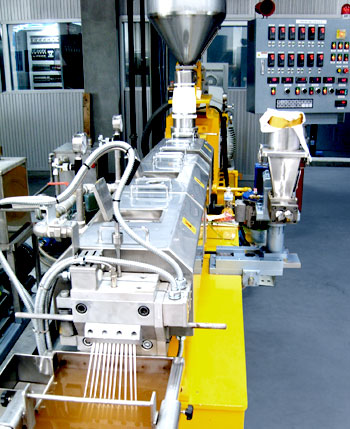

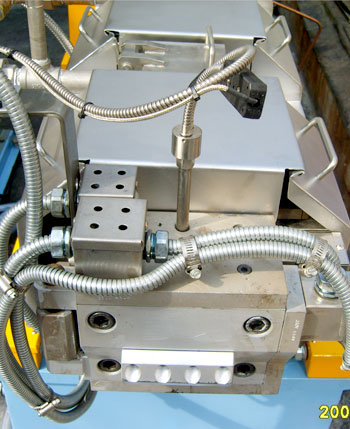

Specification for Twin Screw Extruder (CHS Series)
| Model | Main Drive Motor | Screw Revolution | Screw Diameter | Length / Dia. (L/D) | Through |
|---|---|---|---|---|---|
| kw | rpm | mm (Ø) | mm | kg / hr | |
| CHS 25 | 5.5 | 500 | 24.5 | 32~52 | 5~15 |
| CHS 32 | 11.15 | 430~600 | 31.5 | 32~52 | 10~100 |
| 22.30 | 600~950 | ||||
| CHS 40 | 37.45 | 430~600 | 39.5 | 32~52 | 80~250 |
| 55.75 | 600~950 | ||||
| CHS 48 | 45.55 | 430~700 | 47.5 | 32~52 | 100~350 |
| 75.110 | 700~950 |
Dimensions
| Model | Weight | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| CHS 25 | 1700 | 900 | 778 | 900 | 800 | 925 | 400 | 2409 |
| CHS 32 | 2500 | 745 | 948 | 1125 | 900 | 1100 | 550 | 2730 |
| CHS 45 | 3000 | 1033 | 1043 | 1620 | 900 | 1115 | 550 | 3550 |
| CHS 48 | 3000 | 1233 | 1043 | 1620 | 900 | 1115 | 550 | 3550 |
