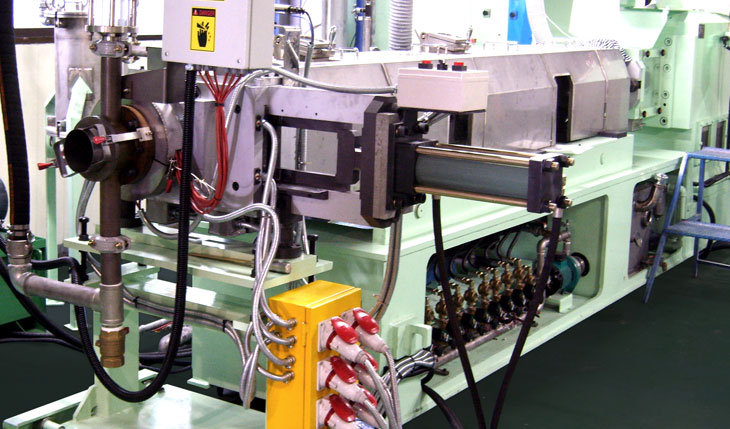

Specification for Twin Screw Extruder (CHS Series)

Model	Main Drive Motor	Screw Revolution	Screw Diameter	Length / Dia. (L/D)	Through
Model	kw	rpm	mm (Ø)	mm	kg / hr
CHS 58	132	430~600	57.5	32~52	400~800
CHS 58	150.185	600~950	57.5	32~52	400~800
CHS 70	185.220	500~700	70.2	32~52	600~1500
CHS 70	250.300	800~950	70.2	32~52	600~1500
CHS 75	220.250	430~700	74.2	32~52	1000~2000
CHS 75	300.400	700~950	74.2	32~52	1000~2000
CHS 92	350.450	430~700	91.2	32~52	1500~3000
CHS 92	600	600~950	91.2	32~52	1500~3000
CHS 120	600, 800, 1000	450~700	119.0	32~52	2500~4000

Model	Weight	A	B	C	D	E	F	G
CHS 58	4600	1400	1600	2085	900	1160	620	1930
CHS 70	7000	1562	1784	2160	900	1190	650	5200
CHS 75	8500	1725	1920	2700	1000	1340	800	5900
CHS 90/92	9500	1800	2450	2870	1000	1405	850	6670
CHS 120	13000	2700	2940	5040	1500	2050	1170	10420
