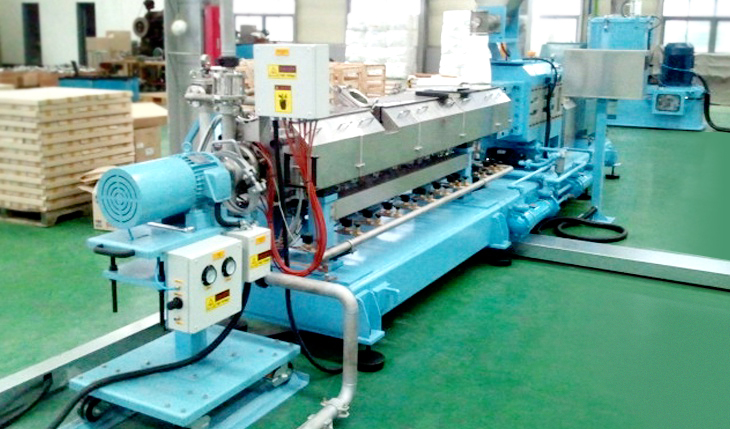

Specification for Twin Screw Extruder (CHS-HSSeries)
| Model |
Main Drive Motor |
Screw Revolution |
Screw Diameter |
Length / Dia. (L/D) |
Through |
| kw |
rpm |
mm (Ø) |
mm |
kg / hr |
| CHS-HS58 |
132 |
430~600 |
57.5 |
32~52 |
400~800 |
| 150.185 |
600~950 |
| CHS-HS70 |
185.220 |
500~700 |
70.2 |
32~52 |
600~1500 |
| 250.300 |
800~950 |
| CHS-HS75 |
220.250 |
430~700 |
74.2 |
32~52 |
1000~2000 |
| 300.400 |
700~950 |
| CHS-HS92 |
350.450 |
430~700 |
91.2 |
32~52 |
1500~3000 |
| 600 |
600~950 |
| CHS-HS120 |
600, 800, 1000 |
450~700 |
119.0 |
32~52 |
2500~4000 |
Dimensions
| Model |
Weight |
A |
B |
C |
D |
E |
F |
G |
| CHS-HS58 |
4600 |
1400 |
1600 |
2085 |
900 |
1160 |
620 |
1930 |
| CHS-HS70 |
7000 |
1562 |
1784 |
2160 |
900 |
1190 |
650 |
5200 |
| CHS-HS75 |
8500 |
1725 |
1920 |
2700 |
1000 |
1340 |
800 |
5900 |
| CHS-HS90/92 |
9500 |
1800 |
2450 |
2870 |
1000 |
1405 |
850 |
6670 |
| CHS-HS120 |
13000 |
2700 |
2940 |
5040 |
1500 |
2050 |
1170 |
10420 |
 |

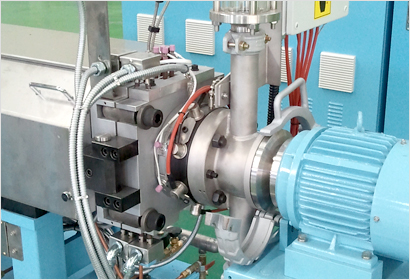

겸용다이시스템 |
Stand Cutting and Under Water
Cutting 겸용 Die |
|
|
